CSC413 Neural Networks and Deep Learning

Lecture 10

Announcements

• Test 2 is this week during tutorials
  • Write during the tutorial section that you are enrolled in unless you have made (or are making) alternative arrangements

Generative Models

Generating Images

How to generate new data of certain types

• generate text that looks like our training data

• generate images that look like our training data

Generating Images II

Models:

• Generative RNNs

• Autoencoder

• Variational Autoencoder (VAE)

• Generative Adversarial Networks (GANs)
  • arxiv.org/abs/1406.2661
  • uoft-csc413.github.io/2023/assets/slides/lec09.pdf

Generating Images III

• Diffusion Models
  • lilianweng.github.io/posts/2021-07-11-diffusion-models/

We’ll talk about autoencoders and VAEs today; GANs if we have time.

Autoencoders

There are two ways of thinking of an image autoencoder:

• a model that will eventually help us generate new images

• a model that finds a low-dimensional representation of images

Both are considered unsupervised learning tasks, since no labels are involved.

However, we do have a dataset of unlabelled images.

Image Autoencoder

Idea: In order to learn to generate images, we’ll learn to reconstruct images from a low-dimensional representation.

An image autoencoder has two components:

1. An encoder neural network that takes the image as input, and produces a low-dimensional embedding.

2. A decoder neural network that takes the low-dimensional embedding as input, and reconstructs the image.

A good, low-dimensional representation should allow us to reconstruct everything about the image.

The Components of an Autoencoder

Encoder:

• Input = image
• Output = low-dimensional embedding

Decoder:

• Input = low-dimensional embedding
• Output = image

Why Autoencoders?

• Dimension reduction:
  • find a low dimensional representation of the image

• Image Generation:
  • generate new images not in the training set
  • (Any guesses on how we can do this?)

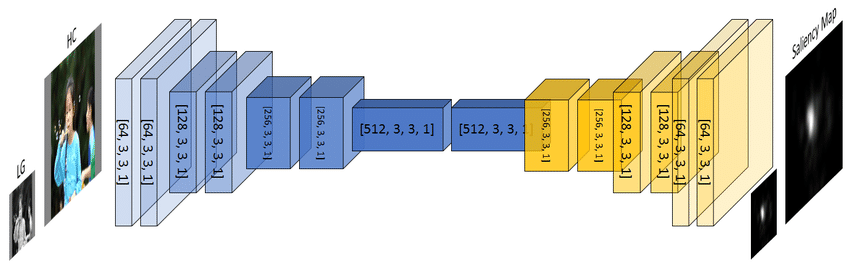

Image Encoder Architecture

What would the architecture of the encoder look like?

• We could use a MLP, but there are some issues (recall: what are these issues?)

• But we can also use a convolutional neural network!

We can use downsampling to reduce the dimensionality of the data

Image Decoder Architecture

What would the architecture of the decoder look like?

We need to be able to increase the image resolution.

We haven’t learned how to do this yet!

Transpose Convolution

Transpose Convolution

Used to increase the resolution of a feature map.

This is useful for:

• image generation problems

• pixel-wise prediction problems

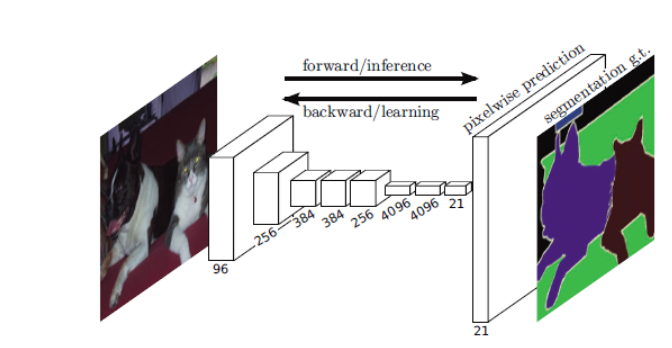

Pixel-wise prediction

A prediction problem where we label the content of each pixel is known as a pixel-wise prediction problem

http://deeplearning.net/tutorial/fcn_2D_segm.html

Q: How do we generate pixel-wise predictions?

What we need:

We need to be able to up-sample features, i.e. to obtain high-resolution features from low-resolution features

• Opposite of max-pooling OR

• Opposite of a strided convolution

We need an inverse convolution – a.k.a a deconvolution or transpose convolution.

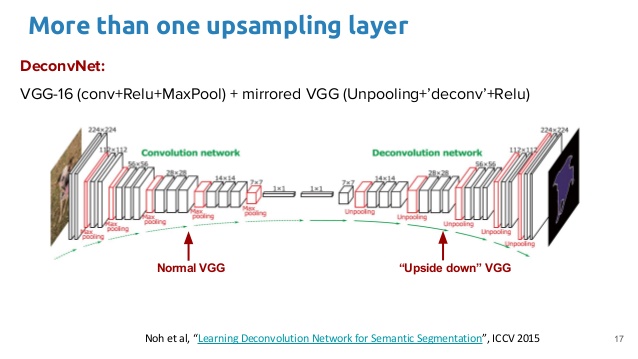

Architectures with Transpose Convolution

Architectures with Transpose Convolution 2

Inverse Convolution

import torch
x = torch.randn(2, 8, 64, 64)
conv = torch.nn.Conv2d(in_channels=8,
                       out_channels=8,
                       kernel_size=5)
y = conv(x)
y.shape

torch.Size([2, 8, 60, 60])

convt = torch.nn.ConvTranspose2d(in_channels=8,
                                 out_channels=8,
                                 kernel_size=5)
x = convt(y)
x.shape

torch.Size([2, 8, 64, 64])

should get the same shape back!

Inverse Convolution + Padding

x = torch.randn(2, 8, 64, 64)
conv = torch.nn.Conv2d(in_channels=8,
                       out_channels=8,
                       kernel_size=5,
                       padding=2)
y = conv(x)
y.shape

torch.Size([2, 8, 64, 64])

>>> convt = torch.nn.ConvTranspose2d(in_channels=8,
                                     out_channels=8,
                                     kernel_size=5,
                                     padding=2)
>>> x = convt(y)
>>> x.shape

torch.Size([2, 8, 64, 64])

should get the same shape back!

Inverse Convolution + Stride

x = torch.randn(2, 8, 64, 64)
conv = torch.nn.Conv2d(in_channels=8,
                       out_channels=8,
                       kernel_size=5,
                       stride=2)
y = conv(x)
y.shape

torch.Size([2, 8, 30, 30])

convt = torch.nn.ConvTranspose2d(in_channels=8,
                                 out_channels=8,
                                 kernel_size=5,
                                 stride=2)
x = convt(y)
x.shape

torch.Size([2, 8, 63, 63])

… almost the same shape …

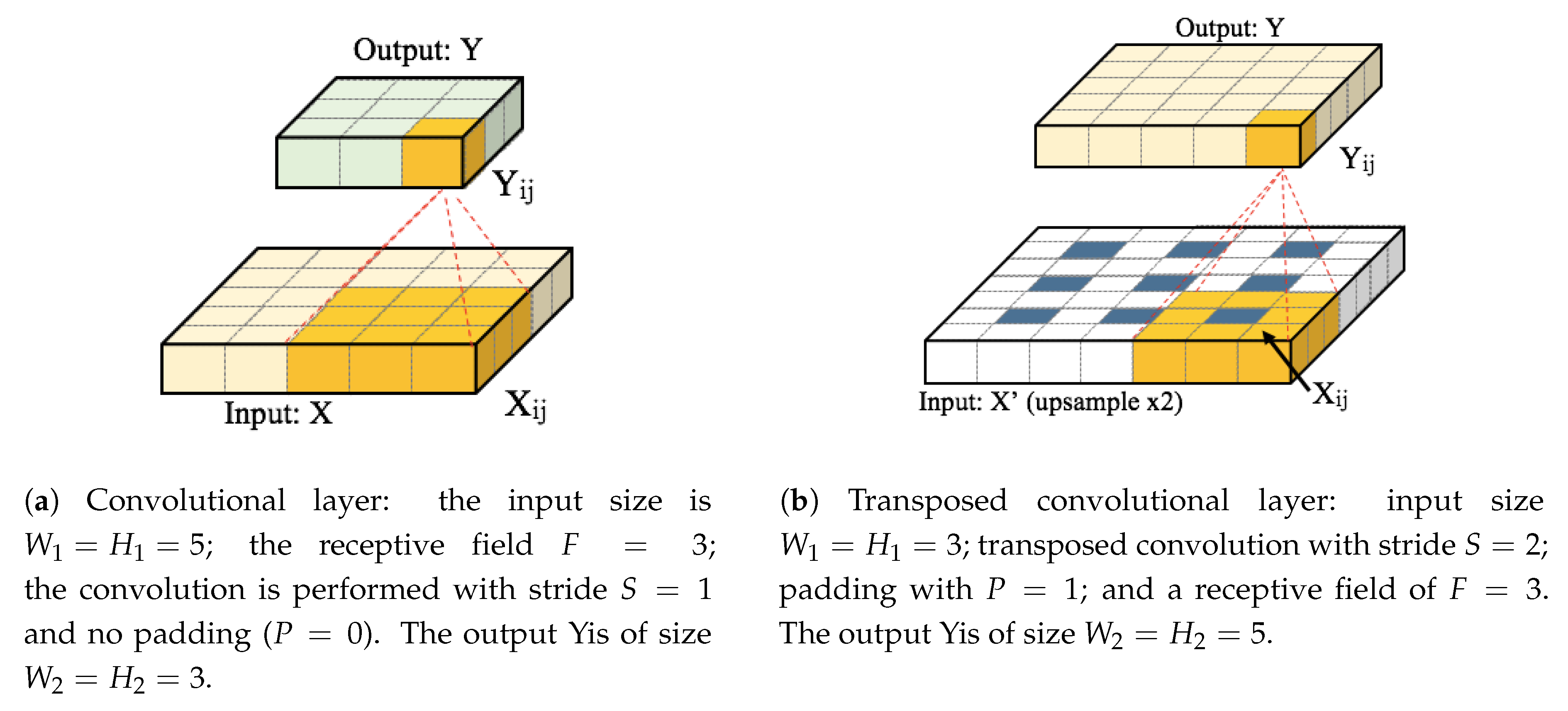

Transpose Convolution Layer

https://www.mdpi.com/2072-4292/9/6/522/htm

More at https://github.com/vdumoulin/conv_arithmetic

Output Padding

torch.nn.ConvTranspose2d(in_channels=8,
                         out_channels=8,
                         kernel_size=5,
                         stride=2,
                         output_padding=1) # +1 to output width/height

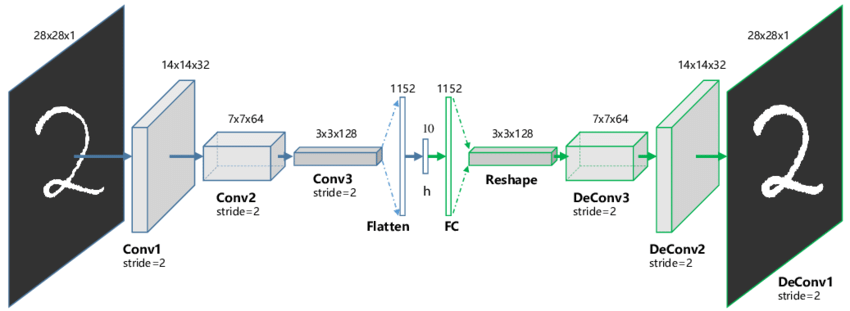

Autoencoder

Let’s get back to the Autoencoder

Recall that we want a model that generates images that looks like our training data

Idea:

• In order to learn to generate images, we’ll learn to reconstruct images from a low-dimensional representation.

• A good, low-dimensional representation should allow us to reconstruct everything about the image.

The Components of an Autoencoder

Encoder:

• Input = image

• Output = low-dimensional embedding

The Components of an Autoencoder II

Decoder:

• Input = low-dimensional embedding

• Output = image

Why Autoencoders?

• Dimension reduction:
  • find a low dimensional representation of the image

• Image Generation:
  • generate new images not in the training set

Autoencoders are not used for supervised learning. The task is not to predict something about the image!

Autoencoders are considered a generative model.

How to Train Autoencoders?

• Loss function: How close were the reconstructed image from the original? Here are some ideas…
  • Mean Square Error (MSE): look at the mean square error across all pixels.
  • Mean Square-Gradient Error (MSGE): take the average of the differences of squared gradients (computed with something like the Sobel filter) across all pixels.
  • \(\ldots\)

How to Train Autoencoders? II

• Loss function: How close were the reconstructed image from the original? Here are some ideas…
  • \(\ldots\)
  • Corner Detection: use computer vision to identify corners. Then across the image (or patches in a partition of the image), compare corner counts, corresponding positions, and/or nearest distances.

How to Train Autoencoders? III

• Optimizer:
  • Just like before!
  • Commonly used for other network architectures too

• Training loop:
  • Just like before!

Let’s Train an Autoencoder for MNIST

Structure in the Embedding Space

The dimensionality reduction means that there will be structure in the embedding space.

If the dimensionality of the embedding space is not too large, similar images should map to similar locations.

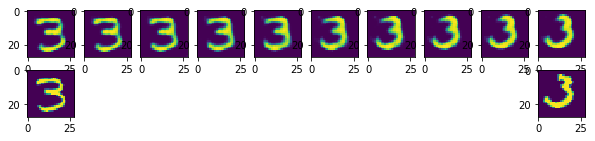

Interpolating in the Embedding Space

Generating New Images

Q: Can we pick a random point in the embedding space, and decode it to get an image of a digit?

A: Unfortunately not necessarily. Can we figure out why not?

Autoencoder Overfitting

Overfitting can occur if the size of the embedding space is too large.

If the dimensionality of the embedding space is small, then the neural network needs to map similar images to similar locations.

If the dimensionality of the embedding space is too large, then the neural network can simply memorize the images!

Blurry reconstructions

Q: Why do autoencoders produce blurry images?

Hint: it has to do with the use of the MSELoss.

Read more: https://ieeexplore.ieee.org/document/8461664
