CSC413 Neural Networks and Deep Learning

Lecture 11

Today’s Agenda

  • GANs

Generative Adversarial Networks

Generative Model

  • A generative model learns the structure of a set of input data, and can be used to generate new data
  • Examples:
    • RNN for text generation
    • Autoencoder
    • VAE

Blurriness of Autoencoder Images

  • Blurry images, blurry backgrounds
  • Why? Because the loss function used to train an autoencoder is the mean square error loss (MSELoss)
  • To minimize the MSE loss, autoencoders predict the “average” pixel

Can we use a better loss function?

Generative Adversarial Network

  • Generator network: try to fool the discriminator by generating real-looking images
  • Discriminator network: try to distinguish between real and fake images

The loss function of the generator (the model we care about) is defined by the discriminator!

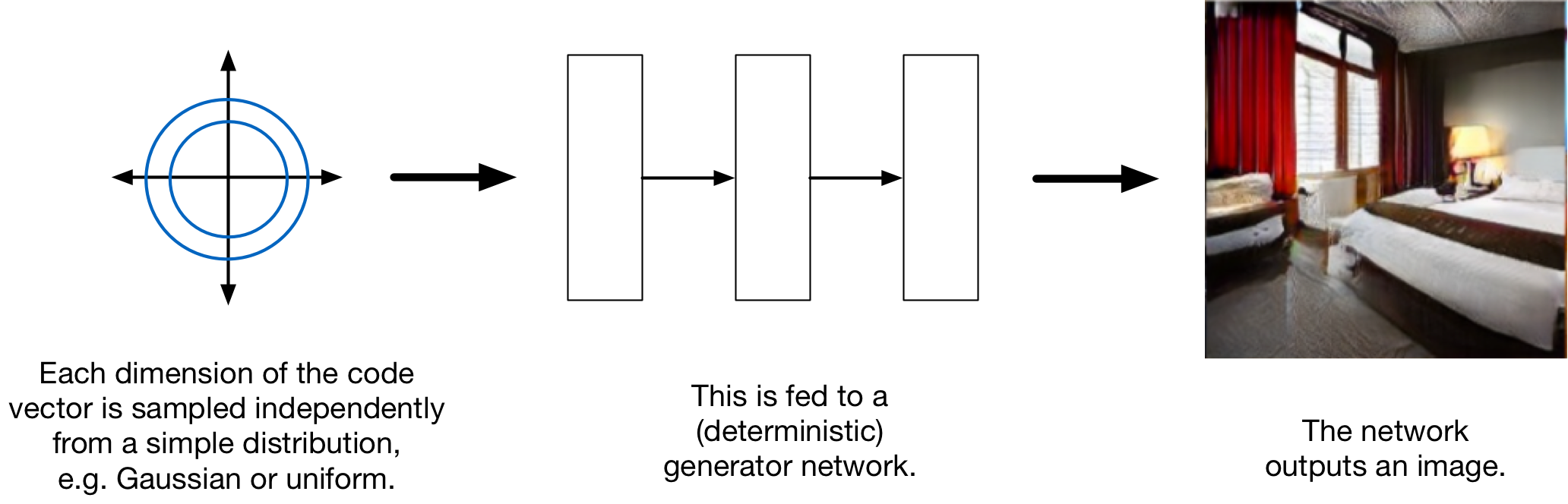

GAN Generator

  • Generator Input: a random noise vector (Q: Why do we need to input noise?)
  • Generator Output: a generated image

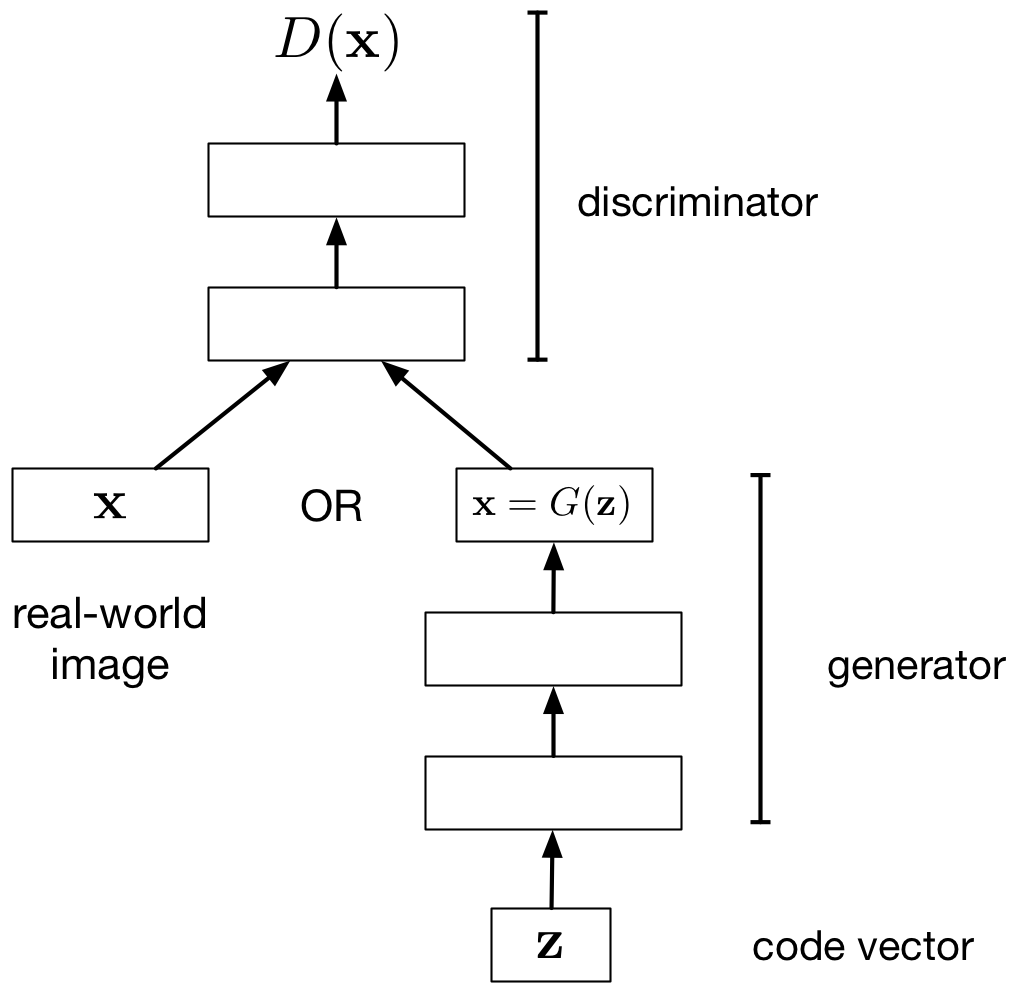

GAN Architecture

  • Discriminator Input: an image
  • Discriminator Output: a binary label (real vs fake)

GAN Loss Function Notation

Discriminator:

  • \(D\) – the discriminator neural network
  • \(\theta\) – the trainable parameters of the discriminator (we’ll write \(D_\theta\) if we want to make the dependency clear)
  • \(x\) – an image (either real or fake)
  • \(D(x)\) or \(D_\theta(x)\) – the discriminator’s determination of whether the image is real (1 = real, 0 = fake)

GAN Loss Function Notation II

Generator:

  • \(G\) – the generator neural netowrk
  • \(\phi\) – the trainable parameters of the generator (we’ll write \(G_\phi\) if we want to make the dependency clear)
  • \(z\) – a random noise vector
  • \(G(z)\) or \(G_\phi(z)\) – a generated image

Q: What does \(D(G(z))\) mean?

GAN: Optimizing the Generator

Let’s assume the discriminator is fixed. Tune generator weights to:

  • maximize the probability that…
    • discriminator labels a generated image as real
    • Q: What loss function should we use?

We wish to tune \(\phi\) to increase \(D_\theta(G_\phi(z))\)

\[ \min_\phi \left(\mathbb{E}_{z \sim \mathcal{N}(0,I)}\left[\log \left(1 - D_\theta(G_\phi(z)) \right) \right]\right) \]

GAN: Optimizing the Discriminator

Let’s assume the generator is fixed. Tune discriminator weights to:

  • maximize the probability that the
    • discriminator labels a real image as real
    • discriminator labels a generated image as fake
    • Q: What loss function should we use?

GAN: Optimizing the Discriminator II

We wish to tune \(\theta\) to:

  • decrease \(D_\theta(G_\phi(z))\), where \(z \sim \mathcal{N}(0, I)\) (the data distribution)
  • increase \(D_\theta(x)\), where \(x \sim \mathcal{D}\) (the data distribution)

\[ \max_\theta \mathbb{E}_{x \sim \mathcal{D}}\left[\log D_\theta(x)\right] + \mathbb{E}_{z}\left[\log \left( 1 - D_\theta(G_\phi(z)) \right) \right] \]

GAN Optimization Problem

If we optimize both the generator and the discriminator then:

\[ \min_\phi \left(\max_\theta \left(\mathbb{E}_{x \sim \mathcal{D}}\left[\log D_\theta(x)\right] + \mathbb{E}_{z}\left[\log \left( 1 - D_\theta(G_\phi(z)) \right) \right]\right)\right) \]

This is called the minimax optimization problem since the generator and discriminator are playing a zero-sum game against each other

Training

Alternate between:

  • Training the discriminator
  • Training the generator

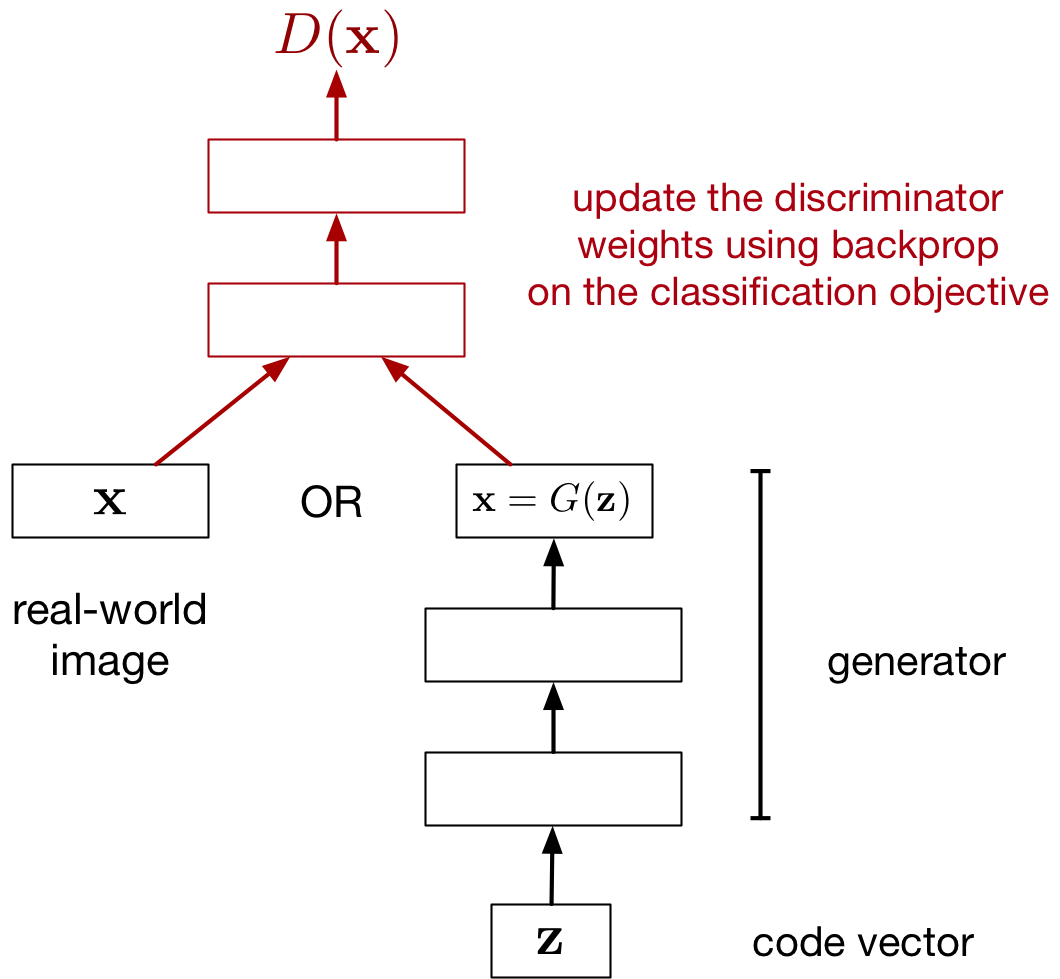

Updating the Discriminator

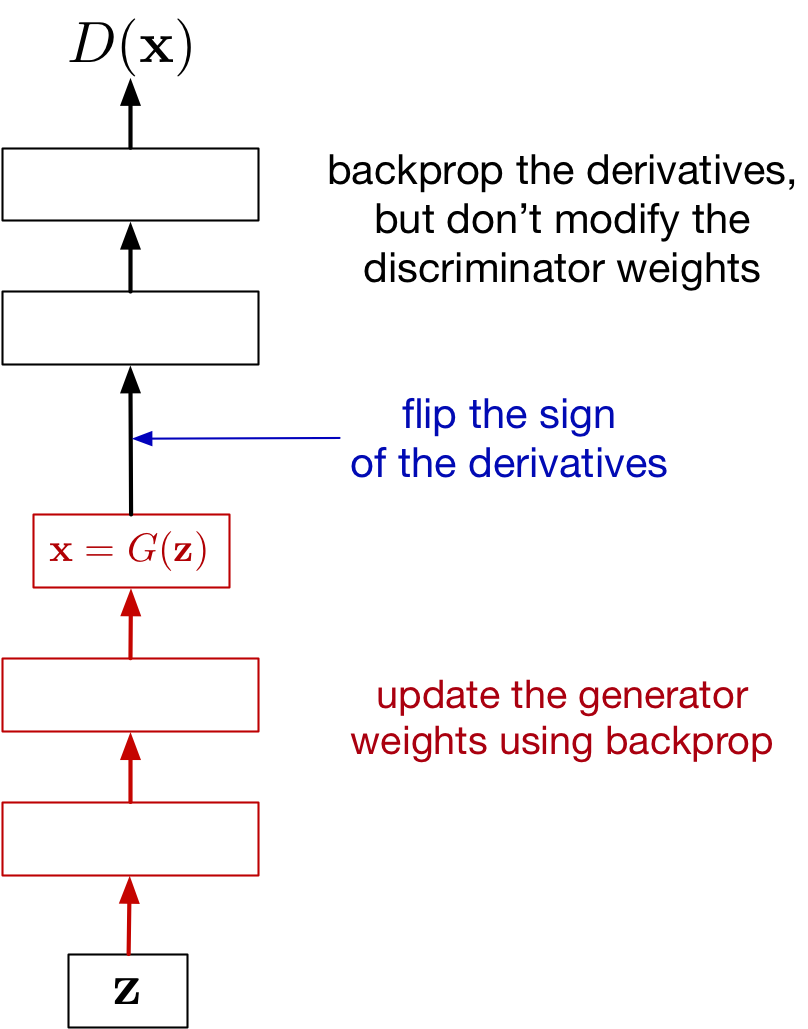

Updating the Generator

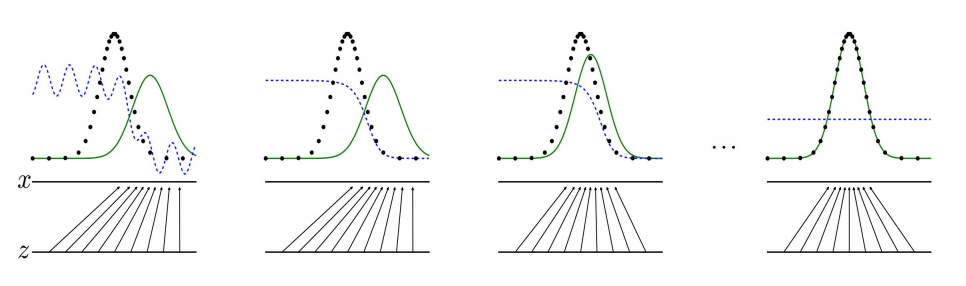

GAN Alternating Training Visualized

Black dots is the data distribution \(\mathcal{D}\), green line is the generator distribution \(G(z)\), and blue dotted line is the discriminator:

GAN Alternating Training Visualized

  1. The distributions \(G(z)\) and \(\mathcal{D}\) are quite different
  2. The discriminator is updated to be able to better distinguish real vs fake
  3. The generator is updated to be better match \(\mathcal{D}\)
  4. If training is successful, \(G(z)\) is indistinguisable from \(\mathcal{D}\)

A nice visualization of GAN training

https://poloclub.github.io/ganlab/

GAN Training Caveats

  • Can work very well and produces crisp, high-res images, but difficult to train!
  • Difficult to numerically see whether there is progress
    • Plotting the “training curve” (discriminator/generator loss) doesn’t help much
  • Takes a long time to train (a long time before we see progress)

GAN: Interpolation in \(z\)

Radford et al. (2016) https://arxiv.org/pdf/1511.06434.pdf

GAN: Vector Arithmetic in \(z\)

Radford et al. (2016) https://arxiv.org/pdf/1511.06434.pdf

GAN Samples (2019)

ImageNet object categories (by BigGAN, a much larger model, with a bunch more engineering tricks)

Brock et al., 2019. Large scale GAN training for high fidelity natural image synthesis

Mode Collapse

We don’t actually know how well a GAN is modelling the distribution. One prominent issue is mode collapse

  • The word “mode” here means “peak” or ” high-value local optimum”
  • GAN model learns to generate one type of input data (e.g. only digit 1)
  • Generating anything else leads to detection by discriminator
  • Generator gets stuck in that local optima

Balance between Generator and Discriminator

If the discriminator is too good, then the generator will not learn due to saturation:

  • Remember that we are using the discriminator like a “loss function” for the generator
  • If the discriminator is too good, small changes in the generator weights won’t change the discriminator output
  • If small changes in generator weights make no difference, then we can’t incrementally improve the generator

Wasserstein GAN (WGAN)

Idea: Use a different loss function.

Arjovsky et al. (2017) Wasserstein GAN. https://arxiv.org/abs/1701.07875
  • Use the Wasserstein distance between the generator distribution and the data distribution
  • Reduces mode collapse, better measurement of progress

Style Transfer with Cycle GAN

Style transfer problem: change the style of an image while preserving the content.

Data: Two unrelated collections of images, one for each style

Cycle GAN Idea

  • If we had paired data (same content in both styles), this would be a supervised learning problem. But this is hard to find.

Cycle GAN Idea

  • The CycleGAN architecture learns to do it from unpaired data.
    • Train two different generator nets to go from style 1 to style 2, and vice versa.
    • Make sure the generated samples of style 2 are indistinguishable from real images by a discriminator net.
    • Make sure the generators are cycle-consistent: mapping from style 1 to style 2 and back again should give you almost the original image.

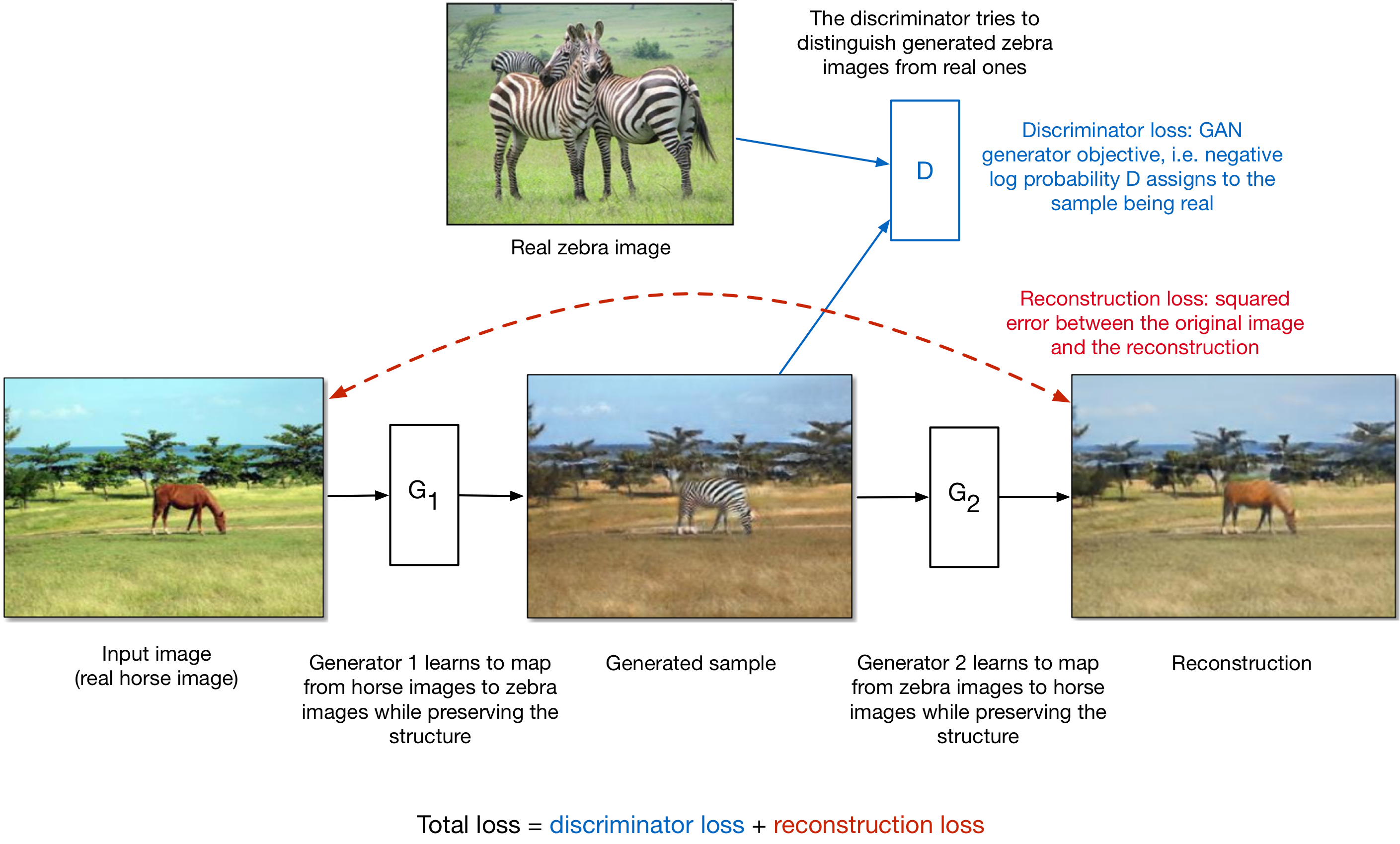

Cycle GAN Architecture

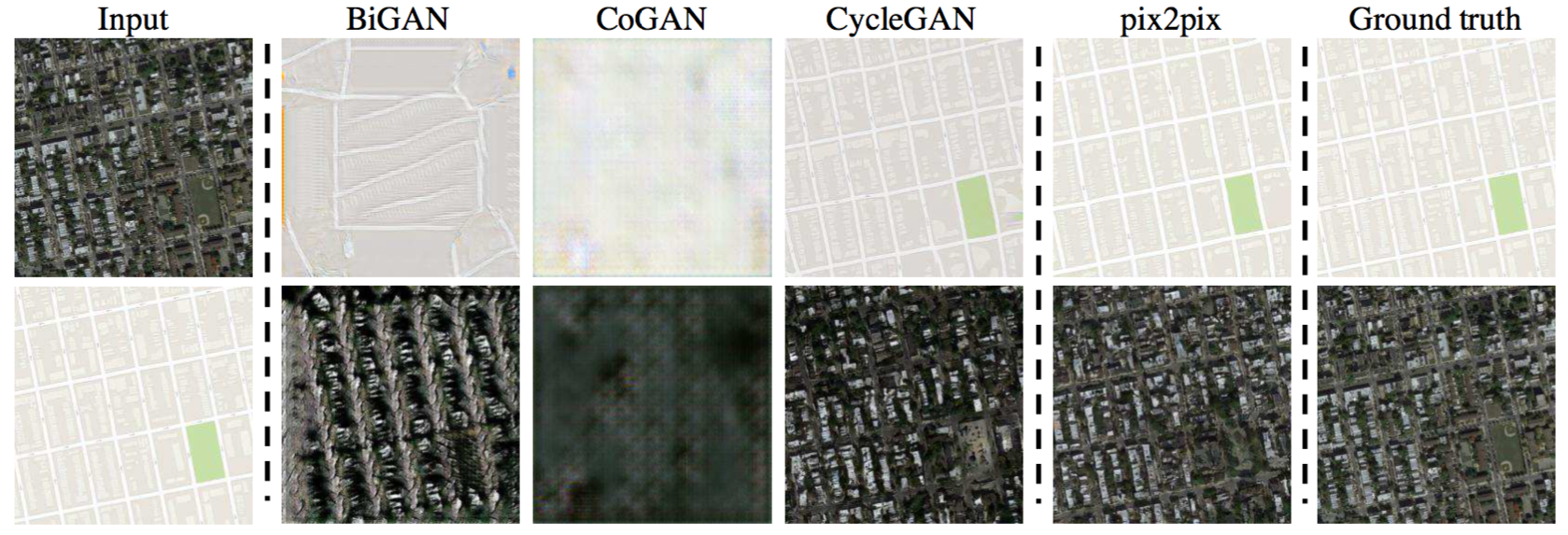

Cycle GAN: Aerial photos and maps

Cycle GAN: Road scenes and semantic segmentation

Ethical and security issues with GANs

https://thispersondoesnotexist.com

Deepfakes for voice
